Specialty Fiber Fusion Splicers FSM-100P
Ürün Kodu : TNG9L7
The Fujikura specialty fiber splicer FSM-100P series offers a host of innovative technologies to address the rapidly expanding splicing needs for factory, manufacturing, laboratory and R&D applications. These capabilities is revolutionizing the way users splice various types of specialty fibers, LDFs, PMFs and so on.
Features
Optimal Plasma Zone Control
The patented “Split V-groove” and electrode systems create flexibility within the plasma zone.
Observation Method for Fiber Rotation Alignment
Side View FSM-100P/100P+ series only
Panda Mode
Matching with Panda fiber brightness data
IPA Mode IPA/IPA2
New added
Interrelation Profile Alignment

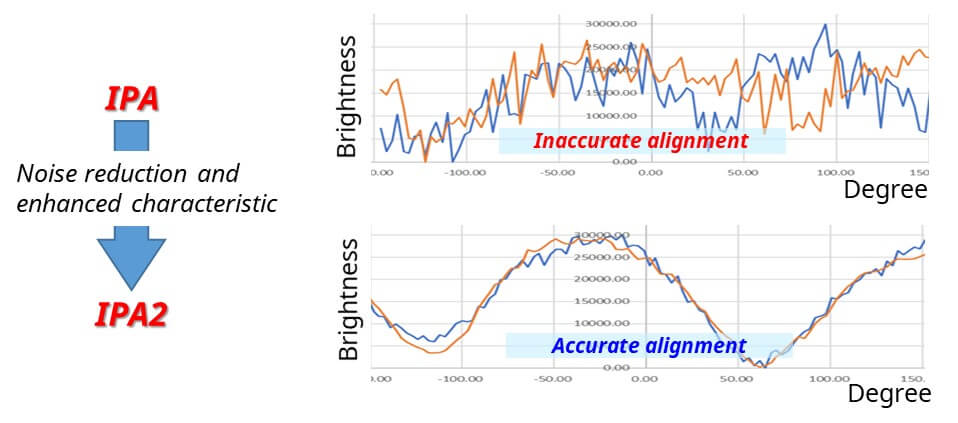

Profiling from brightness data for each degree and matching the interrelation of L-R fibers
End View FSM-100+ series only
Insert illumination LED and observe the fiber end face
Enhanced Sweep Plasma
Enhanced Power Calibrations
The FSM-100 series provides three types of power calibration methods for both 125μm fibers and LDFs.
Dual Splice Loss Estimation
FSM-100 series provides loss estimation methods using either cold or warm splice Images for accurate splice loss estimation.
Cold splice image
Warm splice image
USB, GPIB Communication
| Standard package | |||||
| Item | Model | FSM-100P | FSM-100M | FSM-100P+ | FSM-100M+ |
| Splicer Main Body | FSM-100P | 1pc | ー | ー | ー |
| FSM-100M | ー | 1pc | ー | ー | |
| FSM-100P+ | ー | ー | 1pc | ー | |
| FSM-100M+ | ー | ー | ー | 1pc | |
| Carrying Case | CC-27 | 1pc | |||
| Fiber Holder | FH-100-250 | 1pair | |||
| FH-100-250-EV | ー | 1pair | |||
| FH-100-400 | 1pai | ー | 1pair | ー | |
| FH-100-400-EV | ー | 1pair | ー | ||
| AC Adapter | ADC-15 | 1pc | |||
| AC Power Cord | ACC-xx | 1pc: ACC-01: Japan, -02: USA, -03: UK, -04: EU, -05: Australia |
|||
| Electrodes | ELCT2-25 | 2pairs （1pair for spare） |
ー | ||
| ELCT3-25 | ー | 1pair | |||
| ELCT3-25-LDF | ー | 1pair | |||
| EndView Light Source | EV-LS01 | ー | 2pcs | ||
| USB Cable | USB-01 | 1pc | |||
| Dust Cleaning Stick | DCS-01 | 1pc | |||
| Electrode Cleaner | EC-01 | ー | 1pc | ||
| Warning and Cautions | W-100MP-E | 1pc | |||
| Instruction Manual | M-100MP-E | 1pc | |||
| Splicing Report | SR-01-E | 1pc | |||
| Options | ||
| Item | Model | Remark |
| Fiber Holder |
FH-100-xxx FH-100-xxx-EV |
xxx: coating diameter 60, 100, 125, 150, 180, 210, 250, 300, 350, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800,1900, 2000 -EV model is the fi holder fber or EndView observation system. |
| FH-40-LT900 | for 900 μm coating loose tube fiber. | |
| Optical Fiber Cleaver | CT-101 | Cladding diameter: 80 to 250 μm, Cleave length: 3 to 40 mm, Angled cleaving available up to 15 deg. |
| CT104+ | Cladding diameter: 80 to 600 μm, Cleave length: 5 to 40 mm |
|
| CT105+ | Cladding diameter: 80 to 1250 μm, Cleave length: 5 to 40 mm |
|
| CT106+ | Cladding diameter: 80 to 1250 μm, Cleave length: 5 to 40 mm, Angled cleaving available up to 15 deg. |
|
| CT52 | Cladding diameter: 125 μm, Cleave length: 3 to 5, 8 to 10 mm |
|
| CT58 | Cladding diameter: 80 μm, Cleave length: 3 to 5, 8 to 10 mm |
|
| Fiber Stripper | RS02/03 | Cladding diameter: 125 μm, Coating diameter 200 to 400 μm |
| RS03-80 | Cladding diameter: 80 μm, Coating diameter 150 to 250 μm |
|
| PCS-100 | for polyimide coated fiber | |
| Ultra Sonic Cleaner | USC-03 | |
| Recoater & Cleaner | FSR-05/06/07 | Selectable mold size: 195 μm, 255 μm, 280 μm, 450 μm, 670 μm, 1000 μm |
| Protection Sleeves | FP-, FPS-series | |
