HV Bileşenleri
Ürün Kodu : Y6JR0U

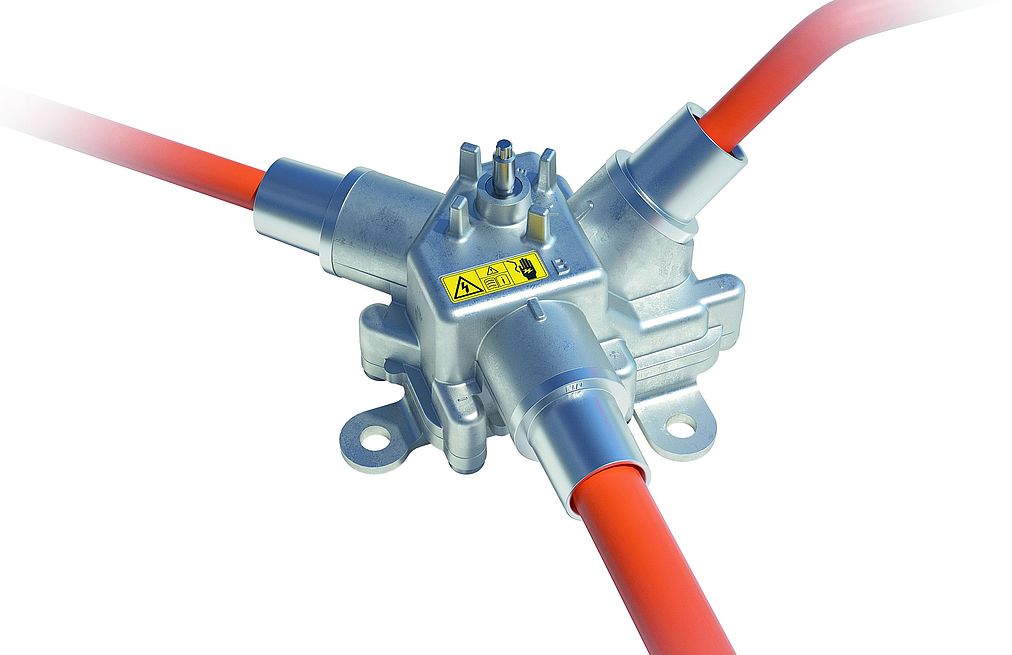

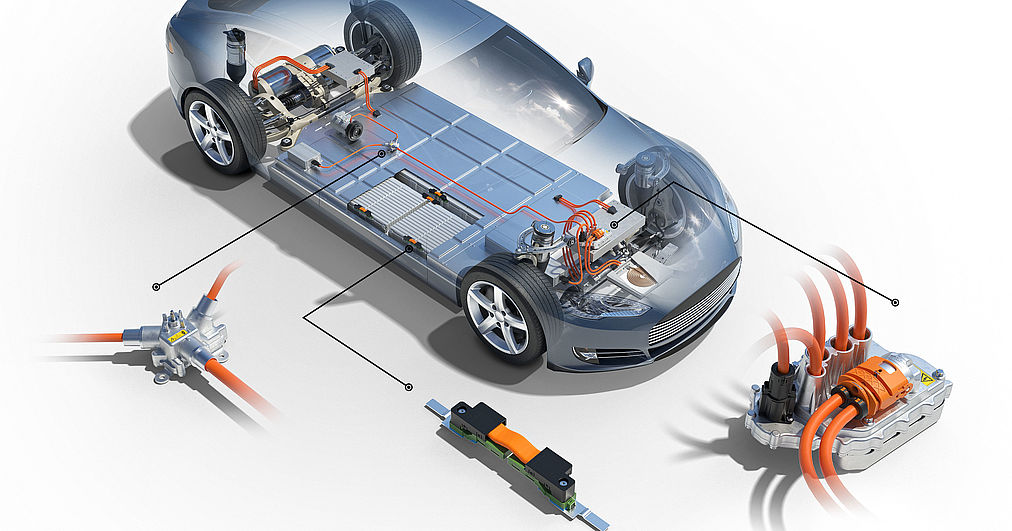

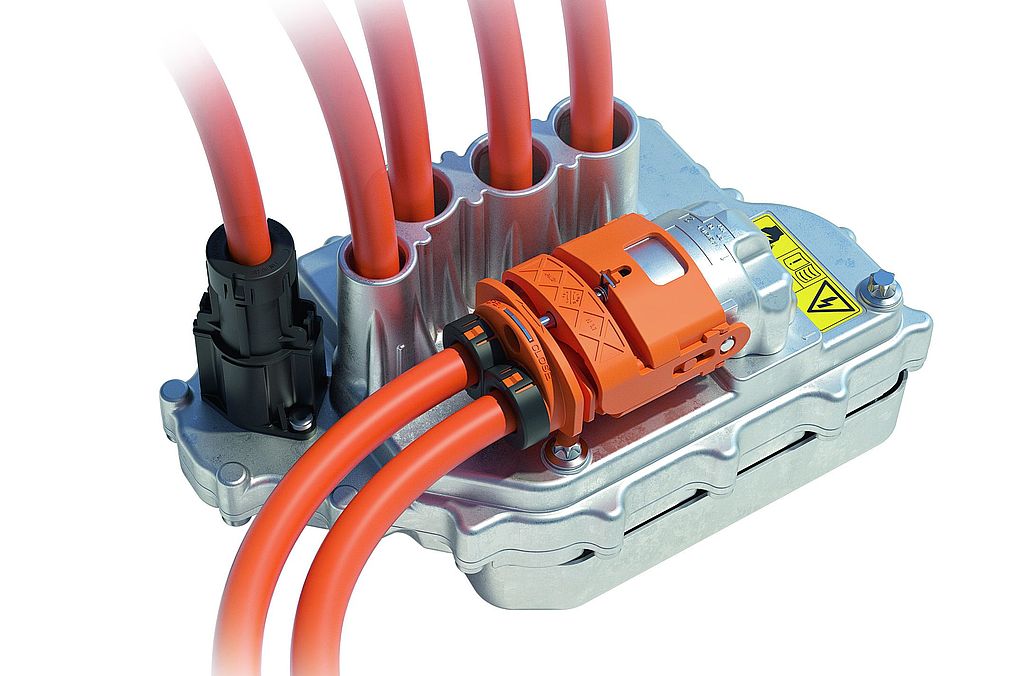

Complementing its standard HV connector portfolio, Rosenberger develops and manufactures customer-specific high-voltage components for electric and hybrid vehicles. These enable the lowest possible transition resistances, ensuring long-term low-loss performance and reliability in critical electrical systems such as those for battery charging, cell management, heating, and air conditioning. From concept to final delivery, Rosenberger high voltage custom components are the perfect fit every time. Using its component toolkit, including PDUs, Y-splitters, Busbars and Cell Modules, Rosenberger can develop and manufacture a wide array of tailor-made solutions. These are designed and configured precisely to the relevant vehicle architecture, allowing ideal combinations of the various fuses, relays and other passive and active components required. Power Distribution Units (PDU) Power distribution units (PDU) for vehicles have multiple power input and outputs and use all kinds of connectors, fuses, and relays. In these cases, the PDU generally forms the central link between the vehicle power electronics and batteries, electric motors, and other ancillary units. Y-Splitters Y-splitters are used to distribute the power from one cable harness to two or more units, e.g., between a DC/DC converter and an electric air-conditioning unit. Rosenberger can design Y-splitters for applications with and without shielding for cable cross sections from 4 mm² to 95 mm² in collaboration with the customer. Cell Module Connectors The Rosenberger HV portfolio also includes cell module connectors. These connectors are required to link battery modules within a battery pack. For typical battery applications, multiple custom-designed battery connection points are required. Based on the robust pressure contact system, Rosenberger offers cell module connectors without flexing parts in the contact area. Systems from 100 to 350 A are available. Different assembly directions, coding variants as well as cross sections can be implemented according to customer-specific requirements.
Features
- Insulation
- EMI shielded
- LV and HV interfaces
- AC and DC currents
Specification Sheet
The CT50 offers enhanced drop impact resistance compared to other existing cleavers and allows workers to replace the cleaving blade, providing customers with a drastic reduction in handling time and maintenance costs. The CT50 changes the position of the cleaving blade automatically and in accordance with the condition of the cleaving state of optical fibers on a fusion splicer through wireless communication. In addition,the CT50 can complete cleaving works including scrap collection, with a single-step.
Ürün Başarıyla Sepete Eklendi
The 90R16 is a mass fusion splicer capable of splicing up to 16 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R16 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R16 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R16 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously. Features
Ürün Başarıyla Sepete Eklendi
The 90R12 is a mass fusion splicer capable of splicing up to 12 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R12 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R12 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R12 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously.
Ürün Başarıyla Sepete Eklendi
Fujikura 90S+ Fusion Splicer FEATURES: Cleaver tracking and upkeep with wireless communication Improved real-time arc control for fibers with poor cleave angles Loose and tight buffer with same sheath clamp Automated wind protector, sheath clamps and splice operation Graphical User Interface with 5.0" Touchscreen PC software and 90S manual downloaded from splicer Multi-function transit case with integrated workstation Lithium-ion battery with 300 splices/shrinks per charge APPLICATIONS: Distribution fiber repair Long-haul network installation Field termination with splice-on connectors Access network installation Fanout kits, pigtails and splice cassettes OSP cable installation and repair Optical modules – splitters, couplers, MUXs, EDFAs and attenuators
