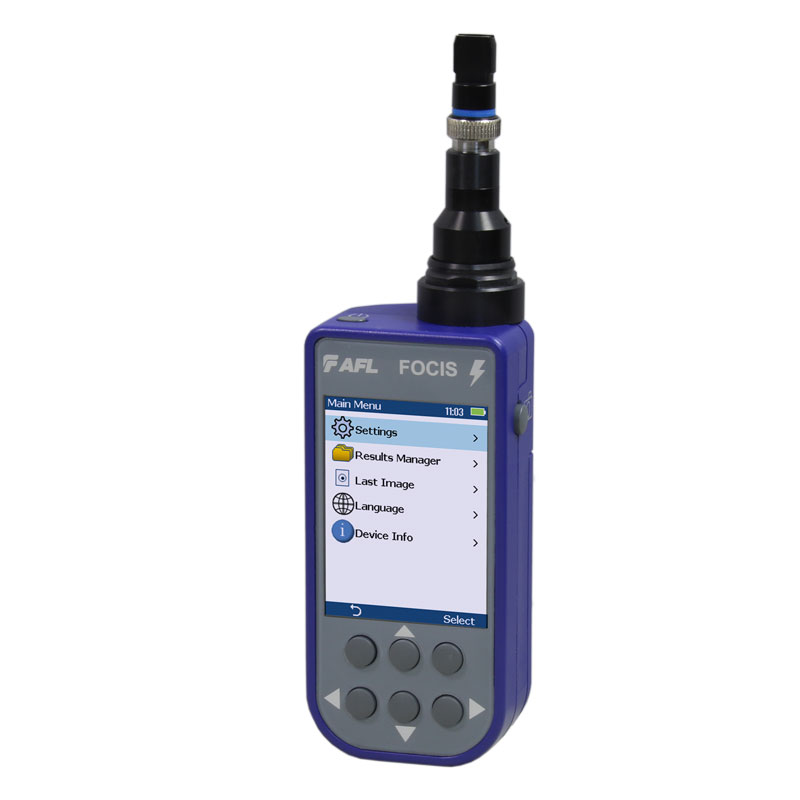

FOCIS Lightning No Wireless Multi-Fiber Optic Connector Inspection System

Product code : R025N8

FOCIS Lightning No Wireless (NW) is a self-contained multi-fiber connector inspection probe with integrated screen. It is intended specifically for the inspection of multi-fiber connectors and bulkheads such MPO and MTP® including multi-row varieties. The FOCIS Lightning NW can perform industry standard and user-defined end-face cleanliness analysis at a rate of about 1 second per fiber. Lightning NW stores connector level and individual fiber images, analysis, overlays, and zones tables locally. Pass / fail results in seconds: With the press of a single button, the FOCIS Lightning NW auto-focuses, captures, centers and analyzes the multi-fiber end-face image to industry standard and user-defined criteria. Untethered operation: With rechargeable battery and integrated 2.4” TFT color LCD screen, FOCIS Lightning NW can be used independently. Multi-fiber front-end adapter tips: Multi-fiber front-end adapter tips support single row and multi-row MT connector inspection for a wide range of patch cords and bulkhead-mounted connectors having either PC/UPC or APC polished end-faces. The probe snout includes a key which in combination with a slot on the adapter tips ensures that adapter tips never loosen during use, under any circumstances.

Features

  • Removes Bluetooth and WiFi features for secure network facility compliance
  • Extremely fast multi-fiber auto-analysis for datacom and telecom inspection applications
  • Auto-focus and auto-centering for fast, easy inspection
  • IEC, IPC, AT&T, and user-defined auto-analys
