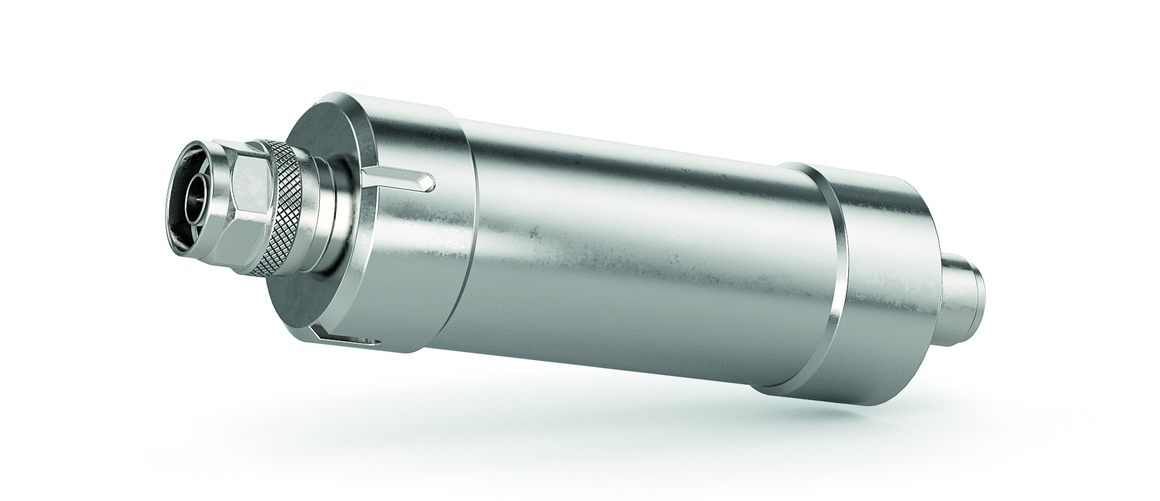

GPS over Fiber System
Product code : JCVAUD
Rosenberger presents a new and innovative GPS over Fiber system for applications where coax cannot be used to route the GPS signal to base stations. With more centralized RAN and large-scale DAS applications, there are many cases where the GPS antennas are located too far from the base stations for coaxial losses to be acceptable. To overcome this issue, the GPS over Fiber system converts the RF signal to light, transmits it over the fiber, and then restores the light to the original RF signal. Working in contrast to the many systems that employ a bulky remote unit – which requires power and separate mounting space – as well as a large master unit encompassing an active GPS splitter, Rosenberger has rethought the process and designed a fiber-optic replacement for the coaxial cable. Instead of a master unit and a remote unit, the system uses an electrooptical converter (E/O converter) at the antenna and an opto-electrical converter (O/E converter) near the base station. By employing this method, the E/O converter becomes a small, compact unit that connects directly to the GPS antenna. The unit is so small that it can even fit within a 1 ½ inch pipe of the kind often used to mount GPS antennas. The O/E converter handles all alarms and is a compact unit. It can be used to power the E/O converter and can be connected to standard GPS splitters with full support for their redundancy functionality. This means that the GPS over Fiber system fully emulates the behavior of a passive copper cable and GPS antenna, allowing any device that is normally connected to the GPS antenna to maintain proper operation when connected to an O/E converter. Interconnecting the two units i.e. E/O converter to the O/E converter is a thin hybrid cable comprised of fiber and power, which means no power source is required at the GPS antenna. The individual link support for each GPS antenna allows for the flexibility of using a normal coaxial configuration and simply replacing each coax cable from a GPS antenna with an E/O converter, an O/E converter, and a hybrid cable. With a maximum hybrid cable length of 1.9 miles (3 km), this system can meet the demands of almost any installation
Specification Sheet
FEATURES: Cleaver tracking and upkeep with wireless communication Improved real-time arc control for fibers with poor cleave angles Loose and tight buffer with same sheath clamp Automated wind protector, sheath clamps and splice operation Graphical User Interface with 5.0" Touchscreen PC software and 90S manual downloaded from splicer Multi-function transit case with integrated workstation Lithium-ion battery with 300 splices/shrinks per charge APPLICATIONS: Distribution fiber repair Long-haul network installation Field termination with splice-on connectors Access network installation Fanout kits, pigtails and splice cassettes OSP cable installation and repair Optical modules – splitters, couplers, MUXs, EDFAs and attenuators
Item Successfully Added to Cart
FEATURES: Warm Splice Imaging (WSI) loss estimation technology Improved real-time arc control for fibers with poor cleave angles Bluetooth enabled cleaver management Two camera, active cladding alignment 5" touchscreen monitor Interchangeable sheath clamps and fiber holders Fully ruggedized for shock, moisture and dust resistance Extended-life electrodes, 5,000 splices, exchangeable without tools
Item Successfully Added to Cart
Recent trends in optical fiber networks demand optical fibers having reduced attenuation to help long distance transmission and bend insensitiveness for harsh installation conditions. FutureGuide®-Ace is an enhanced fiber categorized as ITU-T G.652.D from Fujikura. It offers zero(low)-water peak attribute that enables all-band transmission and superior reduced-attenuation characteristics, while converging bend insensitiveness complying with ITU-T G.657.A1. Also the fiber ensures backward compatibility with all existing conventional networks based on G.652 fibers. FutureGuide®-Ace helps cable manufacturers to design cost-effective and aggressive higher fiber-count cable designs that assist telecom operators to plan for higher fiber density installations. Furthermore, reduced attenuation characteristics ensure longer transmission distance with less number of amplifiers and thus contributes to the reduction of total cost. FutureGuide®-Ace is suitable from long-haul to access networks of 40Gbps, 100Gbps and beyond.
Item Successfully Added to Cart
Clad Alignment Fusion Splicer 45S Kit The 45S is the essential splicer based on active clad alignment technology with features, Fast Operation, User-friendly Design, Versatile Functionality and Consistent Quality.
