Telecommunication

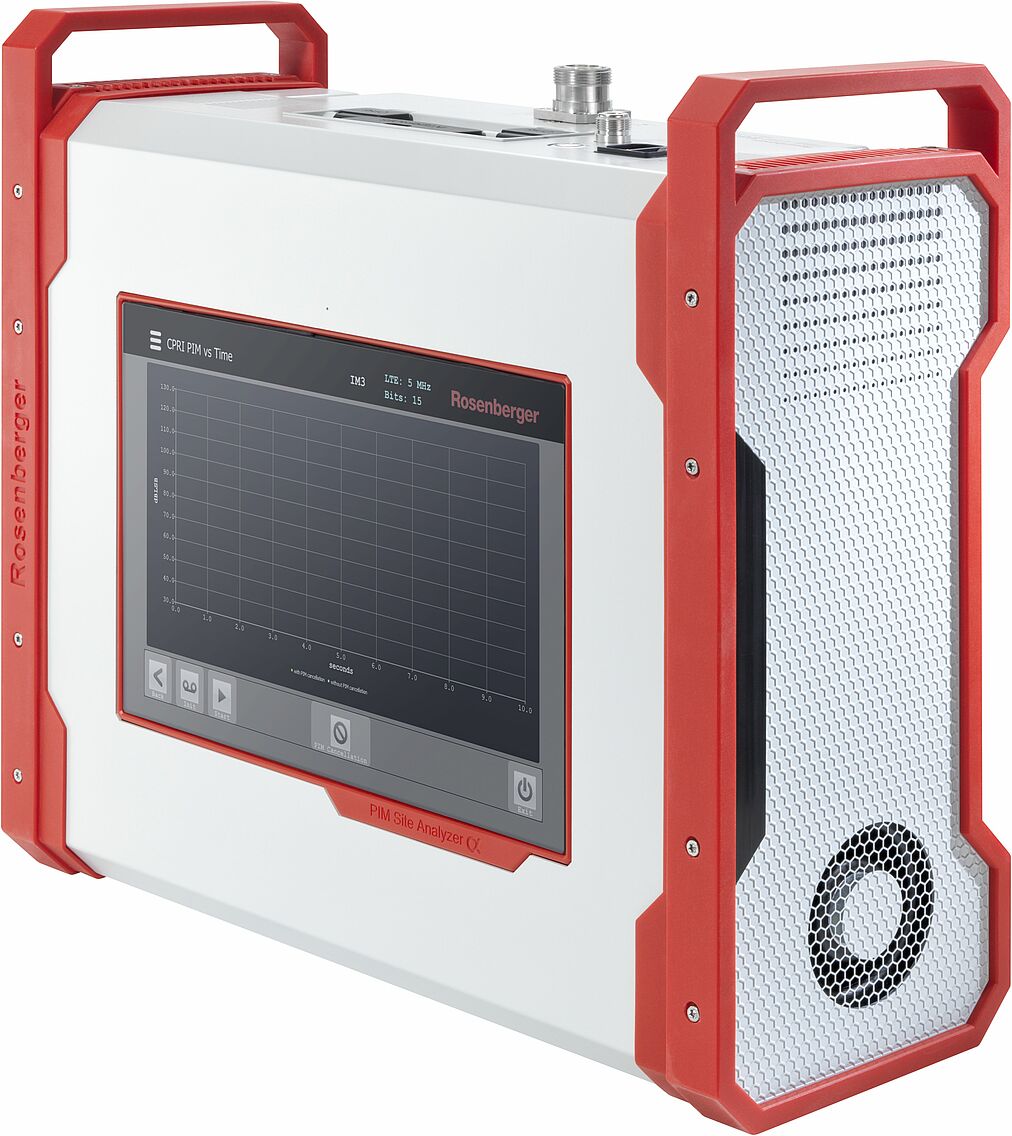

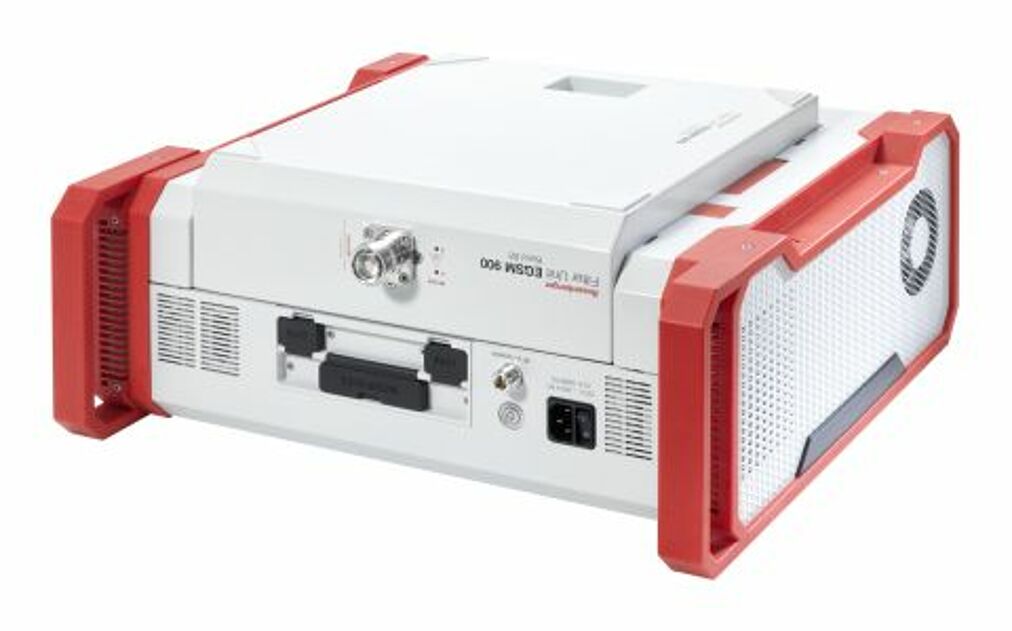

PIM Desktop Analyzer
Product code : CQ5AW6
Rosenberger desktop analyzers are portable and flexible for R&D and test labs. The budget friendly broadband base unit concept offers maximum flexibility to add any other filter unit in the range of 700 to 2700 MHz to the base unit. It allows continuous flexibility in an ever changing environment.
Features
- Single band units for band specific testing
- Outstanding dynamic residual IM-Level < -171 dBc (2 x +43 dBm), typical -174 dBc
- Fast & efficient PIM testing
- Frequency range: 700...2700 MHz (600...3500 MHz on request)
- DTF: Integrated in base unit (no separate module needed)
- Measurements: 2-tone, sweep, DTF, spectrum analyzer, VSWR/return loss, power sweep, isolation measurement
- Built-in WiFi for remote control via optional Android tablet
- 12" touchscreen
- Intuitive software operation
- Exchangeable test port adaptors (7-16 and 4.3-10)
Specification Sheet
