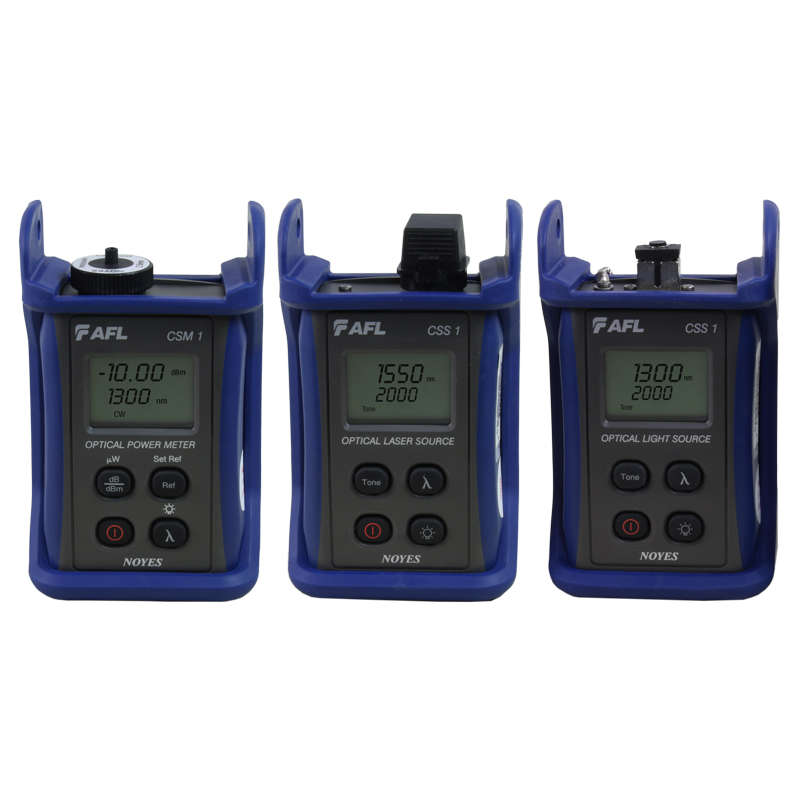

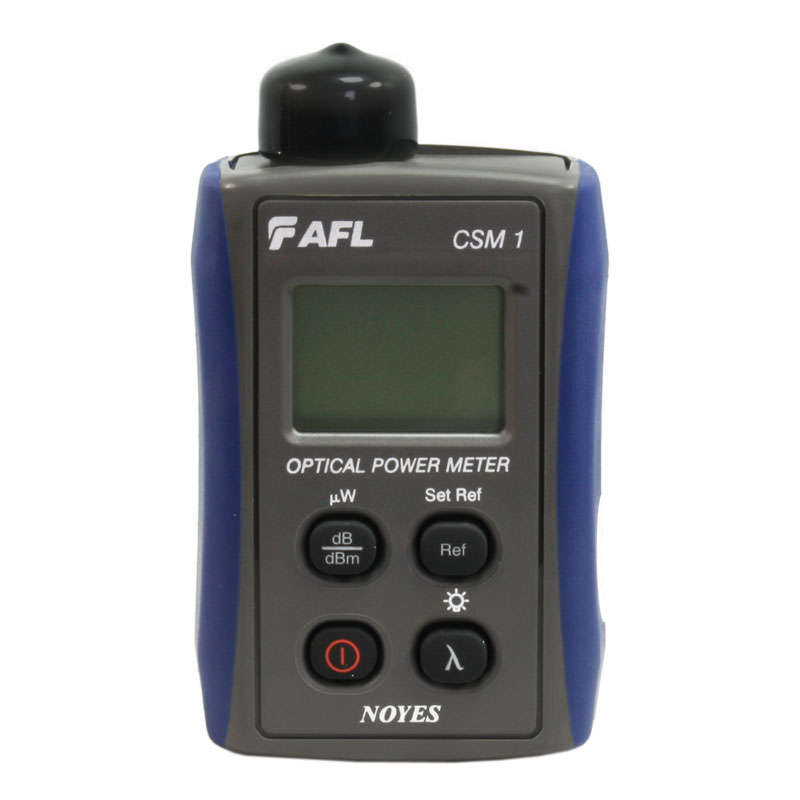

Contractor Series Light Sources and Power Meters
Ürün Kodu : FZ7DEK
FEATURES: Palm-sized rugged, dependable tools Industry-leading 5-Year Warranty Cost-effective, easy to use Auto-off to maximize battery life on Power Meter APPLICATIONS: Link loss measurements Certify SM & MM links to industry standards Continuity check and fiber identification prior to fusion splicing
PRODUCT DESCRIPTION
Contractor Series Light Sources and Power Meters are rugged test instruments designed with a simple user interface and backed by an industry-leading 5-year warranty. Both single-mode and multimode kit options provide tools for measuring network insertion loss, continuity checks, and fiber identification.
- Four models provide wide wavelength and power level ranges
- Stores optical references for each calibrated wavelength
- Auto-detects Test Tones for use in fiber identification
- Optical input port accepts a variety of thread-on adapter caps

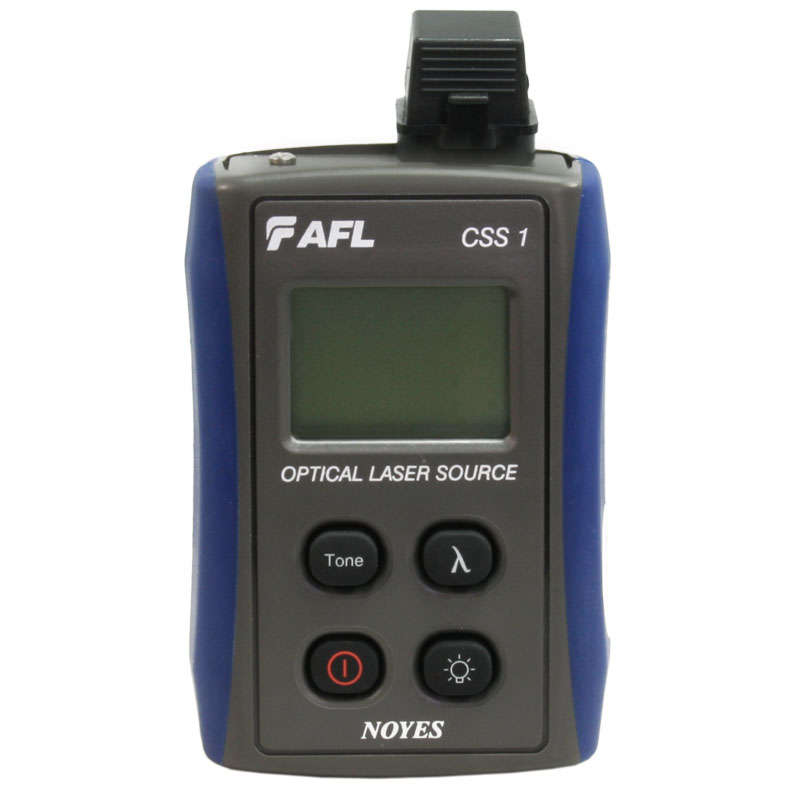

CSS1-SM Laser Source
- 1310 nm and 1550 nm LASER output from single test port
- Output port accepts UCI threaded adapters (FC, SC, ST, LC) for flexibility and access to launch fiber for cleaning and inspection

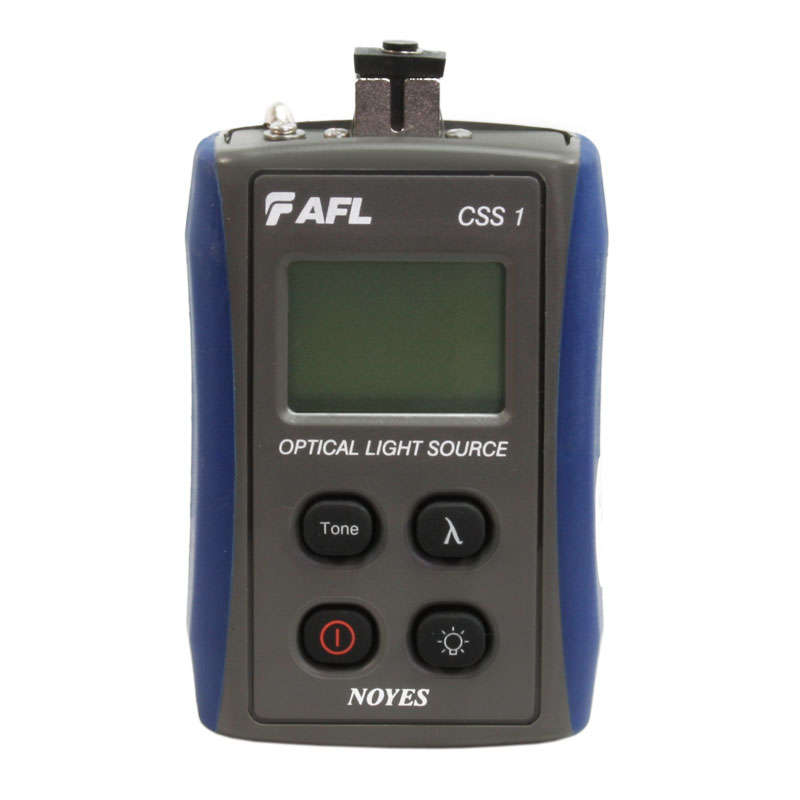

CSS1-MM LED Source
- 850 nm and 1300 nm LED output from single test port
- 50 μm and 62.5 μm mandrels included
- Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
- Use power meters when technician has fiber end access
CSS1 Sources Transmit:
- CW continuous wave output (DC)
- Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
- Use power meters when technician has fiber end access
- Use OFI (optical fiber identifier) for mid-span testing
See specification sheet for full list of models and optional accessories.
